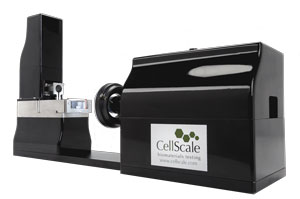

MicroSquisher微压缩测试仪
可以信赖的微尺度机械性能测试
MicroSquisher是一种微型机械性能测试系统，可以实现很多其他仪器无法实现的功能。 更小的标本，更好的力分辨率，更容易的测试设置和极佳的视觉效果。 应用包括小组织样品，水凝胶微球，细胞球体和工程组织生长基质。
Key Features
- 压缩，拉伸，弯曲，压痕和剪切试验方式
- 具有0.1μm分辨率的高精度压电步进装置
- 力分辨率低至10nN
- 高分辨率CCD成像
- 集成化温控液池
- 实时反馈的用户界面软件，操作简单，能实现循环、松弛和多模态等测试
What Our Customers Are Saying
Don’t just take it from us, let our customers do the talking!
我们的实验室专注于用于组织工程应用的软水凝胶的微型和纳米3D打印。 Microsquisher是一种独特的设备，可以比其他方式更准确测试我们的3D打印脚手架。 提供的软件易于使用，并为我们实验室的多样化需求提供灵活性。
Justin Liu, PHD CandidateCellScale提供了在细胞球体中与多功能光学系统一起执行机械测定的独特机会。 CellScale对我们提供了很多支持。
Delivery of Human Adipose Stem Cells Spheroids into Lockyballs.
Prof. Leandra S. BaptistaSpecimens & Mounting
Parallel Plate Compression
Specimen: 300µm hydrogel microsphere (30KPa)
Peak Force: 20mN
Cantilever Bend
Specimen: 20µm thick by 4mm wide foil strip (70MPa)
Peak Force: 3mN
Parallel Plate Compression
Specimen: 2mm diameter hydrogel cylinder (12KPa)
Peak Force: 20mN
Spherical Indentation
Specimen: 1.5mm diameter indenter into hydrogel (2KPa)
Peak Force: 12mN
Bend-Induced Tension
Specimen: spider silk
Peak Force: 2mN
Puncture-Attached Tension
Specimen: 3.5mm wide by 1.5mm thick hydrogel (0.5KPa)
Peak Force: 1.4mN
录像
Micro Scale Biomaterials Testing
Mechanical Test of SoftGel MicroSquisher
Embryo Cell Testing
Mechanical Test of SoftGel MicroSquisher
Cell Spheroid Testing at Georgia Tech
Hydrogel microsphere compression test
技术信息
| Dimensions | 56X 14 X 24cm |
| Weight | 9kg |
| Force Capacity | 500mN |
| Available Force Transducers |
0.005, 0.02, 0.08, 0.2, 1, 5, 25, 100, 500mN |
| Force Accuracy | Approx. 0.2% of transducer capacity |
| Maximum grip separation | Approx. 10mm |
| Maximum Velocity | 0.5mm/s |
| Maximum Cycle Frequency | 0.1Hz |
| Maximum Data Rate | 5Hz |
