MCTR细胞压缩试验机

高通量压缩刺激与实时刚度测量

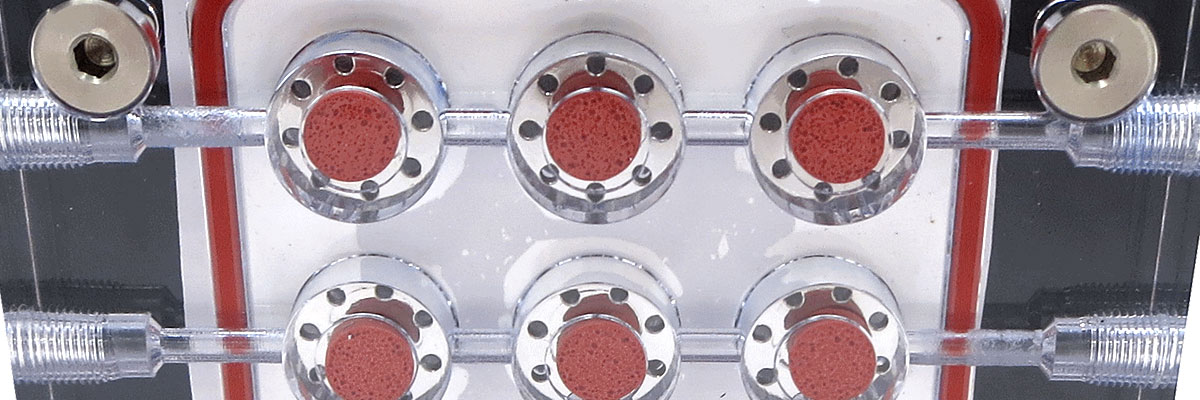

MCTR使用压力驱动的梭子向9个圆柱形组织构造提供单轴压缩。 用户指定的加载协议由系统执行,并且使用非接触式传感器监视所得到的压缩位移。 如果需要,透明培养孔允许在测试期间视觉确认正确的样品加载和实时成像。 样品室板可以灭菌,该系统适用于实验室培养箱中的长期细胞培养。

Key Features

  • 对可重复使用的支架中的9个培养孔进行压缩刺激。
  • 最大可加载力达100N at 2Hz
  • 所有9个井可同步位置测量,分辨率为10μm
  • 用户友好的界面软件,用于指定用于下载到设备控制器的简单,循环和间歇刺激协议

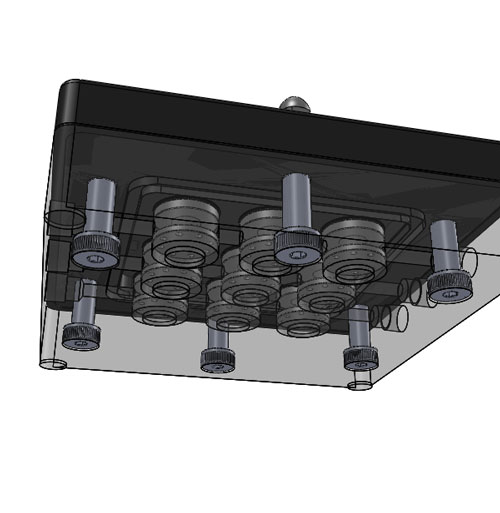

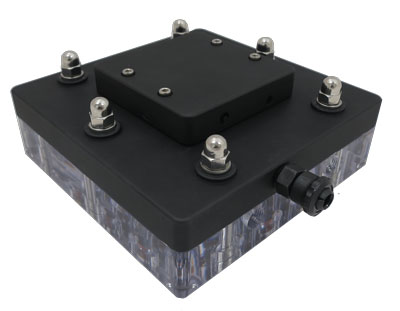

MCTR Image

Specimen and Mounting

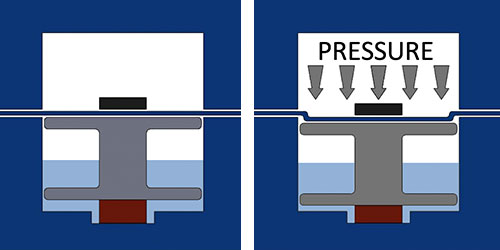

通过对培养室上方的空腔进行加压来实现样品变形,该空腔驱动活塞。 通过测量附着在上表面的磁体的磁场强度来确定活塞的运动。 柔性膜将无菌培养物与压力腔分离。

HydroStatic Compression

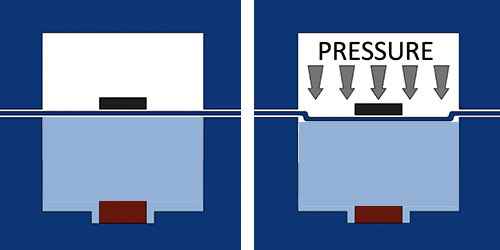

Hydrostatic compression is achieved by filling the culture well to close to the top with the compression shuttle removed. Pressurizing the top chamber results in the flexible membrane deflecting downwards to press against the surface of the liquid.

What Our Customers Are Saying

Don’t just take it from us, let our customers do the talking!

我们在过去两年中使用CellScale设备来评估机械刺激对永久分化和干细胞发展的影响。 该界面用户友好,客户支持服务非常有帮助,设备易于使用,价格便宜,而且精确稳健。

Prof. Dimitrios Zeugolis

National University of Ireland Galway

CellScale MechanoCulture为我们提供了一个非常通用的生物反应器平台。 它的大小和预编程生物反应器条件的能力导致了我们生物反应器需求的成本效益的解决方案。 此外,该软件直观易用。 CellScale易于使用,并能快速解决我们遇到的任何问题。

Prof. Brian Amsden

Queens University

技术信息

Dimensions 14 X 14 X 6cm
Weight 1kg
Stimulation Mode
Uniaxial Compression
Configuration Cylindrical constructs up to 10mm diameter
Maximum displacement 2.5mm
Displacement Resolution 10um
Maximum Cycle Frequency 2Hz
